Performance

Useful Features

•

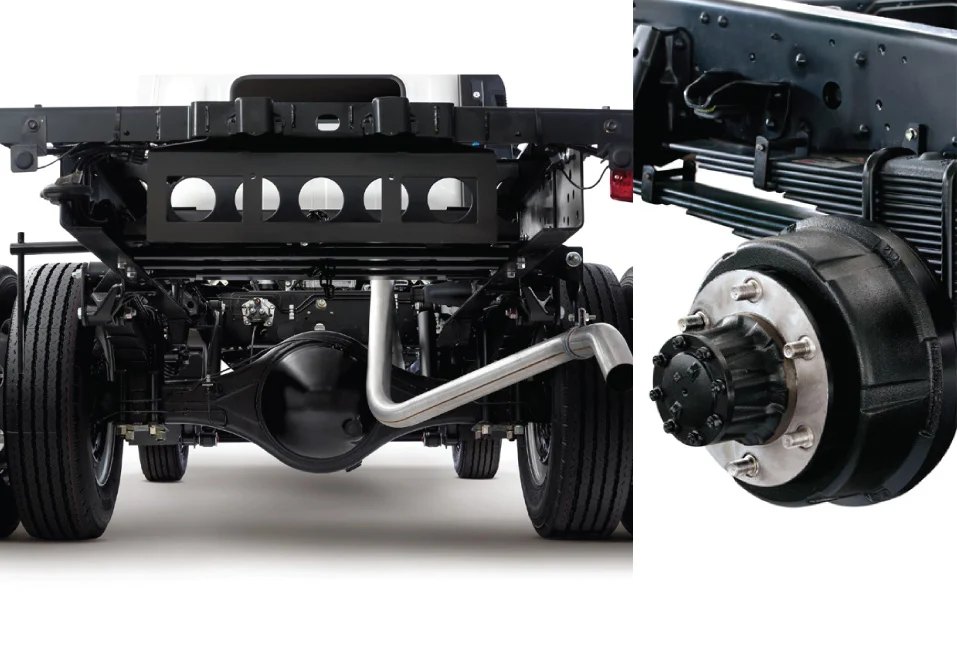

  Longer leaf spring is sturdier, capable of handling heavier loads with less deflection for better driving comfort

•

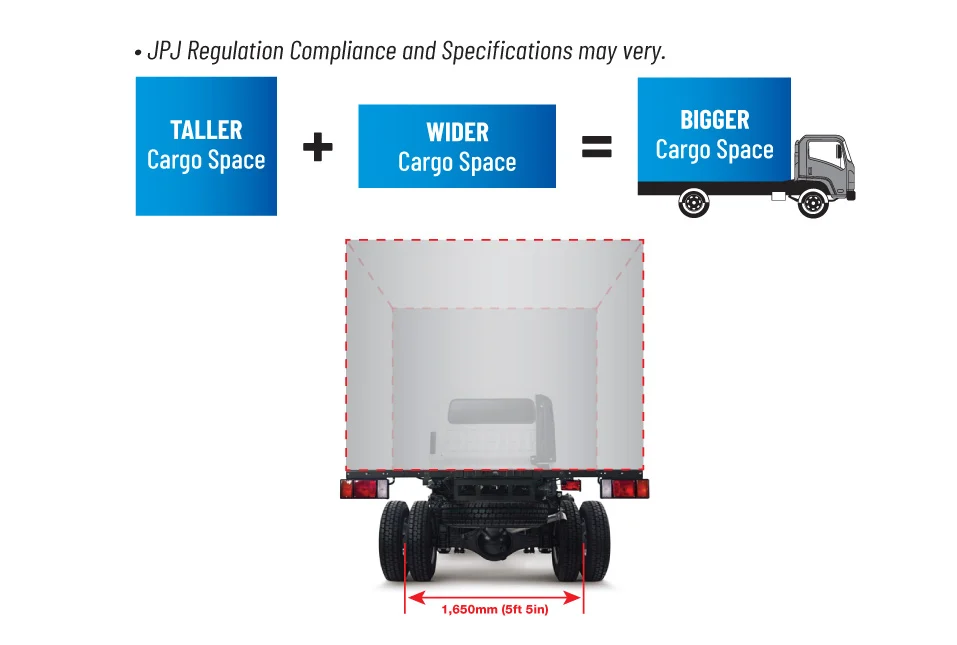

  Wider treads with bigger axle capacity allows installation of various cargo bodies offering greater versatility for any business

•

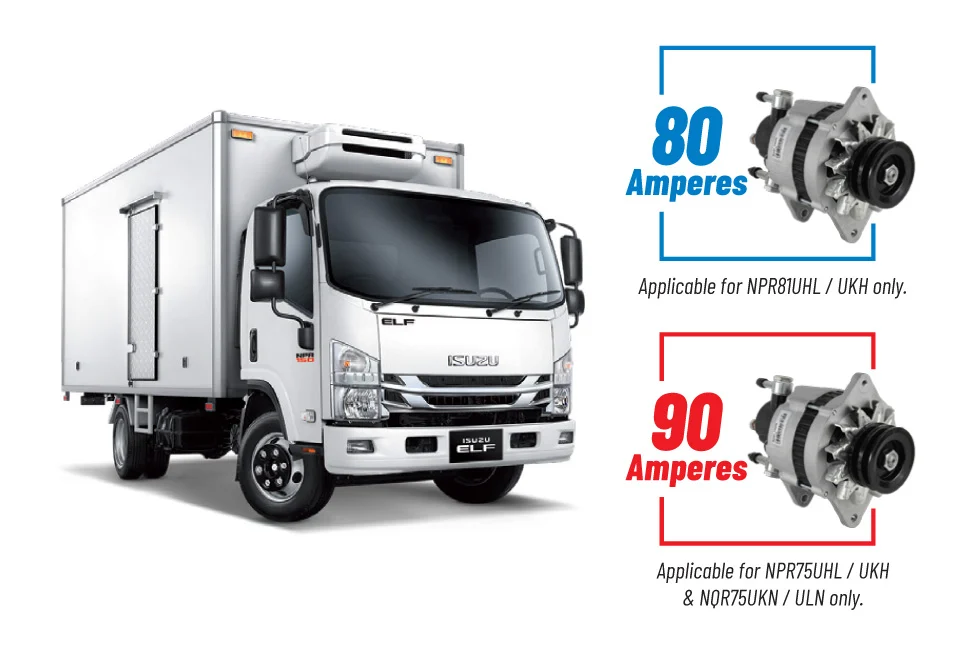

  80 and 90 amperes alternator provides high voltage for high consumption electrical application

•

  6 speed gearbox ensures suitable gear selection

Interior

•

  Best-in-class spacious and quiet cabin with ergonomically designed and placed interior panels positioned for improved visibility makes driving more comfortable with ample room for 3 adults

•

  Wide-angle mirror offers extra visibility of surroundings and minimising blind-spots

•

  Excellent all-round visibility

•

  Brand New Feature – USB Port

Safety

•

  ASR traction control helps prevent wheelspins and improves vehicle stability when driving on slippery roads.

•

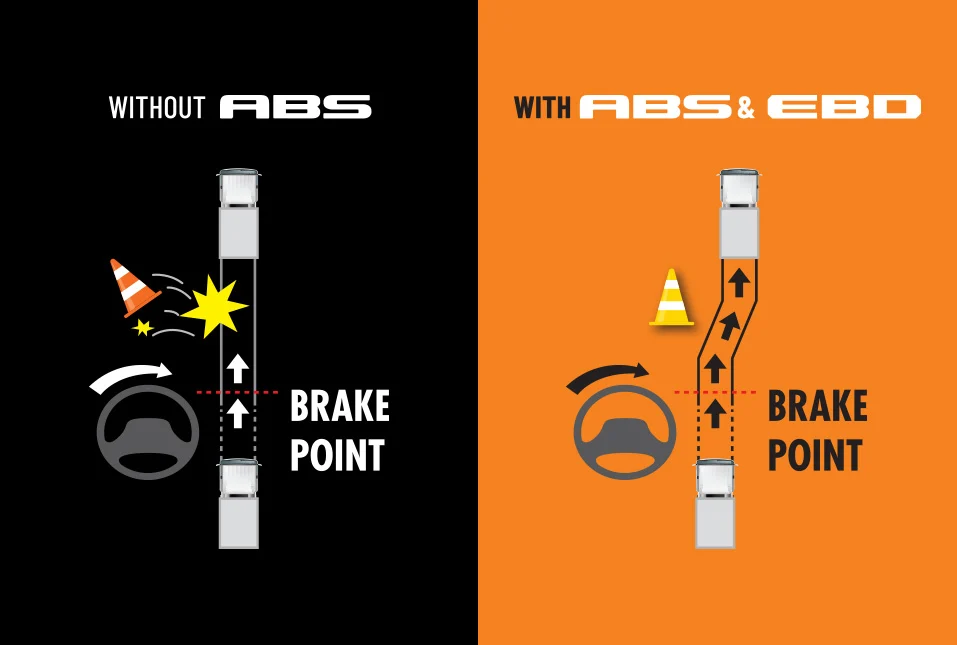

  EBD is a function that uses the ABS to distribute braking force between the front and rear wheels to compensate for changes in the load conditions or any shift of load due to acceleration/deceleration, thus preventing premature locking of the rear wheels

•

  *SRS airbag system and seat belt with pretensioner are activated in the event of a frontal collision, mitigating impact to the head and chest *Applicable for driver only

•

  LED Headlight to provide better visibility

•

  Cabin Tilt & Buzzer for Driver Safety Warning

Body Application

Specification

MODEL CODE		NPR85UKL		NPR75UHL	NPR75UKH	NQR75UKN
e-Brochure		[]
Drive System		4×2
ENGINE
Model		4JJ1-TCC		4HK1-TCN
Type		4-Cylinder Inline,4 Cycle, Water-Cooled
		DOHC, VGS Turbo with Intercooler		OHC, VGS Turbo with Intercooler
Displacement	cc	2,999		5,193
Maximum Output (Gross)	kW (PS) @ rpm	91(125) @ 2600		114(155) @ 2600
Maximum Torque	Nm (kgfm) @ rpm	354 @ 1,500		419 @1600
Emission Level		Euro 4
Fuel System		Common Rail Direct Injection
TRANSMISSION
Model / No. of Speed		MYY-6S / 6-Speed Manual
Gear Ratio	1st	5.979
	2nd	3.434
	3rd	1.862
	4th	1.297
	5th	1.000
	6th	0.759
	Reverse	5.701
	Final	5.571		4.556		5.125
WEIGHT & CAPACITIES
Gross Vehicle Weight	kg	7,500				8,500
Curb Weight	kg	2,530		2,615	2,620	2,835
Front	kg	1,600		2,615	2,620	2,835
Rear	kg	930		850	865	1,000
Fuel Tank Capacity	l	100
AXLE
Front	Type	Reverse Elliot, I-Beam
Front Axle Capacity (Design)	kg	3,100				3,300
Rear	Type	Banjo, Full Floating
Rear Axle Capacity (Design)	kg	5,000		6,600
SUSPENSION SYSTEM
Suspension	Front	Semi Elliptical Alloy Steel Leaf Spring with Double Acting Telescopic Shock Absorber
	Rear
TYRES & WHEELS
Tyres		215 / 75R17.5
Wheels		17.5 x 6.00 – 127
BRAKES
Service	Type	Drum Brakes with Dual Circuit Hydraulic Control
		Hydraulic Pressure Assistance and Anti-Lock Brake System (ABS) with Electronic Brake Force Distribution (EBD)
Parking Brake Type		Transmission Mounted, Mechanical Operated Internal Expanding
Auxiliary		Exhaust Brake
STEERING
Steering System		Power Assist, Recirculating Ball Type
Min. Turning Radius	m	7.2		6.4	7.1
ELECTRICAL
Battery		80D26LX2
Alternator		24V-90A
OTHER SAFETY
Safety		Supplemental Restrait System (SRS) with Pre-Tensioner Seatbelt
		Anti-Slip Regulator (ASR) with 0n/0ff Function
		Cab Tilt Warning
Security		Central Locking with Remote Keyless Entry & lmmobiliser
DIMENSION
Overall Length	mm	6,635		5,985	6,635
Overall Width	mm	2,115
Overall Height	mm	2,272		2,244	2,254
Wheelbase	mm	3,815		3,365	3,815
Front Overhang	mm	1,110
Rear Overhang	mm	1,710		1,510	1,710
Front Tread	mm	1,680
Rear Tread	mm	1,650
Cab to Axle Center	mm	3,242		2,792	3,242
